GAH06-CMF Custom High Compact Tube In Shell Heat Exchanger With 16
KW Capacity
Description:

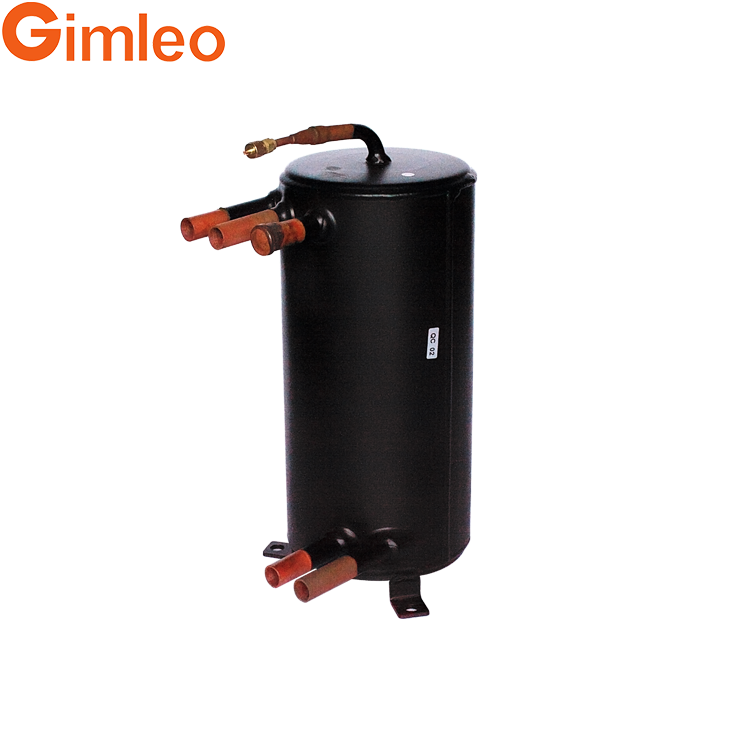

The GAH06-CMF is a revolutionary tank heat exchanger from Gimleo,
designed for industrial and commercial water heating with its
advanced high-compact helix structure redefining efficiency
standards. With a powerful 16 kW output, this machine delivers
exceptional performance and sustainability across a variety of
applications. The GAH06-CMF’s efficient helix design maximizes heat
transfer while minimizing energy consumption, significantly
reducing operational costs. Crafted with premium materials, its
robust construction ensures long-lasting durability and consistent
performance even in demanding industrial environments. Its compact
design saves space and simplifies installation and maintenance,
making it an excellent fit for modern facilities. Whether upgrading
existing systems or implementing new solutions, the GAH06-CMF
offers the perfect blend of efficiency and reliability to meet
diverse thermal management needs.
Quick Detail:
1. Innovative Helix Structure: Unique design maximizes heat transfer efficiency.
2. 16 KW Capacity: Ensures powerful and effective thermal management.
3. Premium Construction: Durable materials guarantee long-term performance.
4. Energy Efficient: Reduces energy consumption and operational costs.
5. Compact Design: Space-saving structure simplifies installation and maintenance.
Specification:
Common Version Heat Exchanger
| Model | Heating capacity1(KW) | Heating capacity2(KW) | Cooling capacity(KW) | Water flow(m3/h) | Height(mm) | Spacing of water connection (mm) | Refrigerant inlet(mm) | Refrigerant outlet(mm) |
GAH01-CMF/ GBH01-CMF | 3.5 | 2.5 | 2.5 | 0.6 | 221 | 140 | 12.7 | 9.52 |
GAH02-CMF/ GBH02-CMF | 5 | 3.5 | 3.5 | 0.86 | 261 | 180 | 12.7 | 9.52 |
GAH03-CMF/ GBH03-CMF | 7 | 5 | 5 | 1.2 | 331 | 250 | 12.7 | 9.52 |
GAH04-CMF/ GBH04-CMF | 10 | 7.5 | 7.5 | 1.72 | 391 | 310 | 15.88 | 9.52 |
GAH05-CMF/ GBH05-CMF | 13 | 9.5 | 9.5 | 2.24 | 308 | 220 | 19.05 | 12.7 |
GAH06-CMF/ GBH06-CMF | 16 | 12 | 12 | 2.75 | 353 | 265 | 19.05 | 12.7 |
GAH07-CMF/ GBH07-CMF | 18 | 14 | 14 | 3.5 | 396 | 308 | 19.05 | 12.7 |
GAH08-CMF/ GBH08-CMF | 22 | 16 | 16 | 3.7 | 440 | 352 | 19.05 | 12.7 |
GAL10-CMF/ GBL10-CMF | 33 | 13 | 23 | 5.7 | 467 | 360 | 28 | 12.7 |
GAL12-CMF/ GBL12-CMF | 38 | 28 | 28 | 6.5 | 507 | 400 | 28 | 12.7 |
GAS15-CMF/ GBS15-CMF | 45 | 35 | 35 | 7.8 | 565 | 460 | 28 | 19.05 |
Heating1: DB 7 ℃,WB 6℃, Inlet water 40℃, outlet water 45℃
Heating2: DB -12 ℃, Outlet water 41℃
Cooling: DB 35 ℃,WB 24℃, Inlet water 12℃, outlet water 7℃
