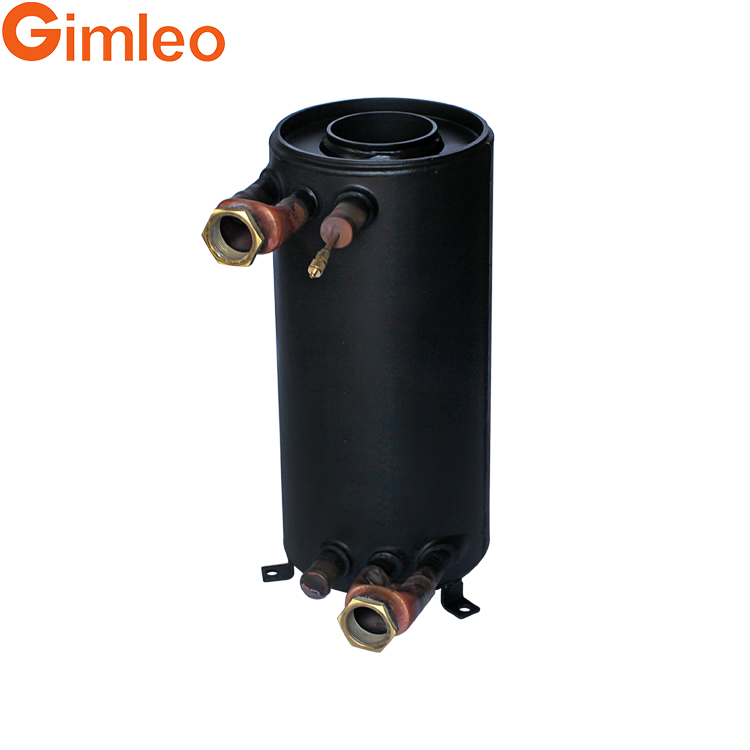

5.2MPa Maximum Working Pressure Tube Shell Heat Exchanger GBL10-CMF
for Industrial Applications
Description:
Introducing the GBL10-CMF, Gimleo’s high-performance tube shell
heat exchanger designed for demanding industrial applications.
Engineered to handle a maximum working pressure of 5.2MPa, this
heat exchanger ensures robust and reliable thermal management,
making it ideal for various high-pressure environments.
The GBL10-CMF is constructed with high-quality 25.4 mm finned
copper tubes, optimizing heat transfer efficiency while maintaining
a compact volume. Its innovative design significantly reduces water
resistance, ensuring efficient operation and reduced energy
consumption. The durable steel shell construction guarantees
long-term reliability and consistent performance, even under the
most challenging conditions.
This advanced heat exchanger is perfect for applications requiring
efficient thermal management, delivering outstanding results across
a wide range of industrial settings. Experience the cutting-edge
technology and superior quality of Gimleo’s heat exchangers with
the GBL10-CMF, tailored to meet your high-pressure cooling and
heating needs.
Quick Detail:
1. High Working Pressure: Operates effectively with a maximum working pressure of 5.2MPa.
2. Energy Efficient: Reduces operational costs while maintaining high performance.
3. Versatile Applications: Ideal for various industrial cooling and heating systems.
4. Reliable Performance: Consistent operation in demanding industrial environments.
Specification:
Common Version Heat Exchanger
| Model | Heating capacity1(KW) | Heating capacity2(KW) | Cooling capacity(KW) | Water flow(m3/h) | Height(mm) | Spacing of water connection (mm) | Refrigerant inlet(mm) | Refrigerant outlet(mm) |
GAH01-CMF/ GBH01-CMF | 3.5 | 2.5 | 2.5 | 0.6 | 221 | 140 | 12.7 | 9.52 |
GAH02-CMF/ GBH02-CMF | 5 | 3.5 | 3.5 | 0.86 | 261 | 180 | 12.7 | 9.52 |
GAH03-CMF/ GBH03-CMF | 7 | 5 | 5 | 1.2 | 331 | 250 | 12.7 | 9.52 |
GAH04-CMF/ GBH04-CMF | 10 | 7.5 | 7.5 | 1.72 | 391 | 310 | 15.88 | 9.52 |
GAH05-CMF/ GBH05-CMF | 13 | 9.5 | 9.5 | 2.24 | 308 | 220 | 19.05 | 12.7 |
GAH06-CMF/ GBH06-CMF | 16 | 12 | 12 | 2.75 | 353 | 265 | 19.05 | 12.7 |
GAH07-CMF/ GBH07-CMF | 18 | 14 | 14 | 3.5 | 396 | 308 | 19.05 | 12.7 |
GAH08-CMF/ GBH08-CMF | 22 | 16 | 16 | 3.7 | 440 | 352 | 19.05 | 12.7 |
GAL10-CMF/ GBL10-CMF | 33 | 13 | 23 | 5.7 | 467 | 360 | 28 | 12.7 |
GAL12-CMF/ GBL12-CMF | 38 | 28 | 28 | 6.5 | 507 | 400 | 28 | 12.7 |
GAS15-CMF/ GBS15-CMF | 45 | 35 | 35 | 7.8 | 565 | 460 | 28 | 19.05 |
Heating1: DB 7 ℃,WB 6℃, Inlet water 40℃, outlet water 45℃
Heating2: DB -12 ℃, Outlet water 41℃
Cooling: DB 35 ℃,WB 24℃, Inlet water 12℃, outlet water 7℃
Company Introduction:
Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city
, a professional manufacturer of energy- saving heat exchanger
equipment integrated with R& D, manufacture, sales and service.
Gimleo, founded in 2005, is based on high tech and high quality
with advanced manufacturing facilities, testing equipment along
with many high-educated professional staff; especially we’ve
established a heat exchange capacity-testing lab ahead of others in
the industry.
Our products cover high efficiency tube in shell heat exchanger,
titanium heat exchanger, nickel-copper tube in shell heat
exchanger, coaxial heat exchanger, etc. which can be widely used in
swimming pool equipment, aquarium chiller, marine refrigerant
units, air source heat pump, water source heat pump, aquaculture,
pharmacy, food industry, electroplating industry and heat recovery
from the waste water or exhaust gas.
We deeply realize the importance of scientific management and
technical innovations.Firstly Gimleo has passed the ISO 9001
improving and strengthening the entire quality control process from
R& D to sales.Meanwhile, the company establishes the perfect
information platform for the whole manufacturing and R& D
system-ERP. In 2016 .We had passed 174 environmental REACH testing
and certification.
After several years of development, Gimleo has become a leading
domestic enterprise in manufacturing heat exchangers, in great
cooperating relationships with about 150 companies.
Products Detail:
