15.88mm Refrigerant Inlet Heat Exchanger RAH05-CMF-Z With Enthalpy-Adding Function

Products Description

Product name	Enthalpy-adding Heat Exchanger
Type	R series enthalpy-adding
Model number	RAH05-CMF-Z
Heating capacity	16kw
Cooling capacity	12kw
Water flow	2.24m^3/h
Use as	Condenser,Evaporator

Series Products

Product Introduction :

Enthalpy-adding is Optional additional structure in tube-in-shell heat exchanger. All of our tube-in-shell heat exchanger products can be added this structure.

Enthalpy-adding Heat Exchanger integrates the economizer into the heat exchanger, which significantly improves the heat transfer efficiency of the heat exchanger at low temperature(Below-10℃). The integrated design allows customers to reduce the volume of equipment and production costs without additional configuration of the economizer.

Product Features :

• Enthalpy-adding structure can Considerably improve the heating efficiency at low temperature condition.
• Due to the integrated design, heat exchange equipment can be made smaller and cheaper

• It is Optional additional structure of all of our tube in shell heat exchanger products.

Product list :

All of tube-in-shell heat exchanger

product	Common Version Heat Exchanger	R series Heat Exchanger
	Compact Version Heat Exchanger	Double Wall Tube Heat Exchanger
	Multitube Heat Exchanger

Principle of economizer :

High-pressure liquid refrigerant from condenser is divided into two parts. One part of refrigerant absorbs heat through throttling expansion and becomes two-phase (gaseous and liquid) fluid with low temperature and pressure.Two-phase fluid exchanges heat with another part of liquid refrigerant through economizer, so that the other part of refrigerant can get lower temperature. Two-phase fluid becomes gas and enters the compressor to continue cycle. The other part of low temperature liquid directly enters the evaporator for refrigeration .

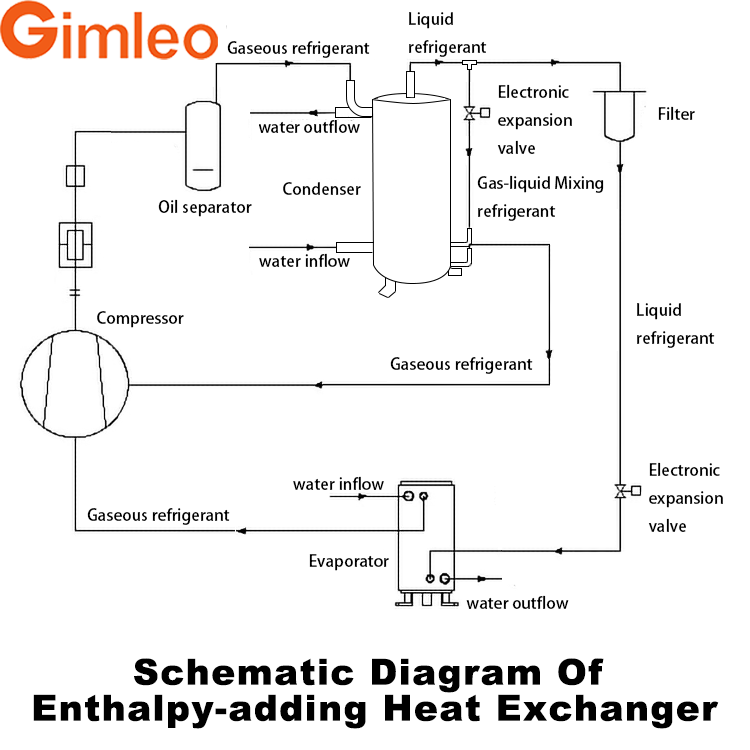

Principle of enthalpy-adding heat exchanger :

Enthalpy-adding structure is an economizer integrated in the heat exchanger, Enthalpy-adding heat exchanger is usually used as condenser. This structure can significantly improve the heat exchange efficiency at low temperature(Below-10℃).

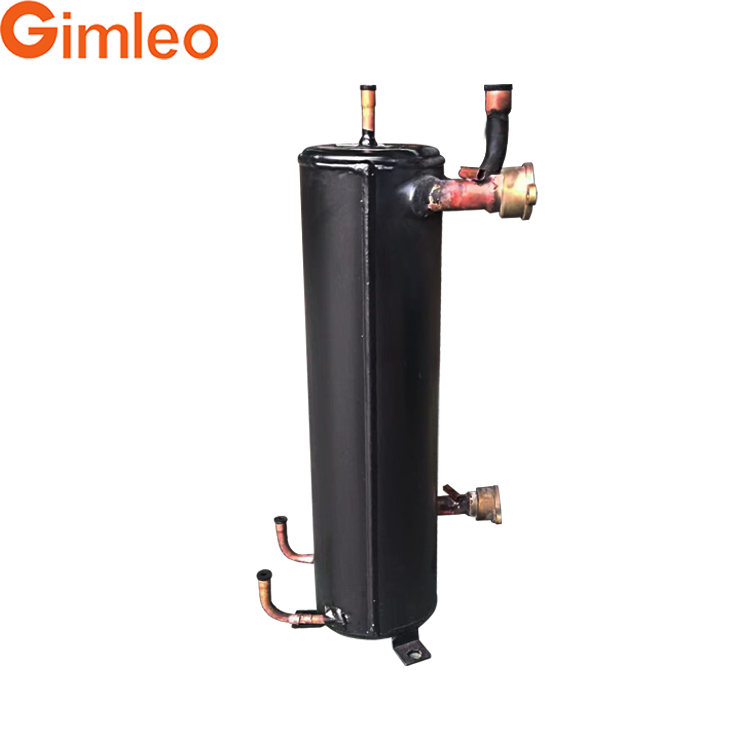

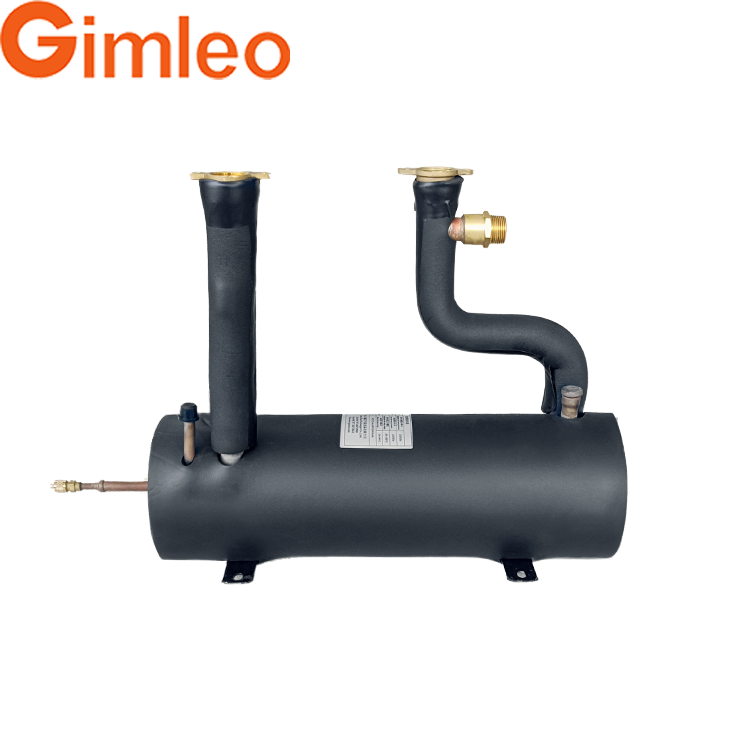

Details Images

Product Application

Gimleo Heat Exchanger Co., Ltd. is a specialized manufacturer of various heat exchangers.

We are devoted in investigating and providing energy-saving and high efficiency products, including tube in shell heat exchangers, titanium tube heat exchangers . They are widely used in water chillers, swimming pool heat pumps , water cooled central air systems, heat pump equipment, and water handling systems.

There is a strict quality management system, advanced production equipment and testing laboratory, including auto welding machines and testing equipment.

We have attained ISO9001:2008 certification. Thus our products are of high quality, stable and safe.

Our products sell well in Europe, America, the Middle East, Southeast Asia, and Australia. If you are interested in our products, please feel free to contact us or visit our website for more information.
