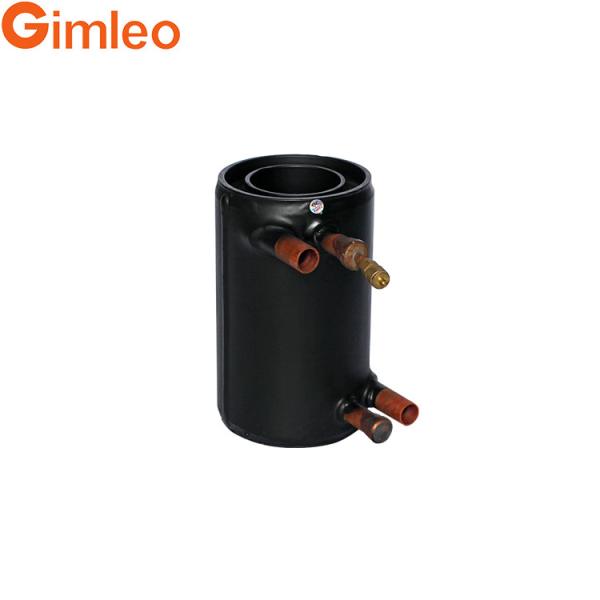

9.52mm Refrigerant Outlet Tubular Heat Exchanger Condenser
GBH01-CMF for Cooling
Description:
Discover the GAH01-CMF, Gimleo’s high-performance tubular heat
exchanger condenser, expertly crafted for superior cooling
efficiency. Engineered with a 9.52mm refrigerant outlet, this
condenser is tailored to meet the demands of various industrial and
commercial cooling applications, ensuring optimal thermal
management.
The GAH01-CMF boasts a durable tubular design that significantly
enhances heat transfer efficiency, ensuring steady and reliable
cooling. Made with premium materials, this heat exchanger is built
to withstand challenging environments, providing consistent
performance and longevity. Its innovative structure is designed to
minimize operational costs while delivering exceptional energy
efficiency, making it an economical choice for modern cooling
systems.
With its compact form and high cooling capacity, the GAH01-CMF is
an excellent solution for applications that require dependable and
efficient cooling. Trust in the advanced technology and exceptional
quality of Gimleo’s heat exchangers with the GAH01-CMF, engineered
to exceed the highest standards of thermal performance.
Quick Detail:
1. 9.52mm Refrigerant Outlet: Optimized for efficient refrigerant flow and superior cooling
performance.
2. High-Quality Construction: Built with premium materials to ensure durability and long-term
reliability.
3. Energy Efficient: Engineered to reduce operational costs while maintaining high
performance.
4. Compact Design: Space-saving structure simplifies installation and maintenance.
5. Versatile Applications: Ideal for a wide range of industrial and commercial cooling
systems.
6. Reliable Performance: Ensures effective thermal management in demanding environments.
Specification:
Common Version Heat Exchanger
| Model | Heating capacity1(KW) | Heating capacity2(KW) | Cooling capacity(KW) | Water flow(m3/h) | Height(mm) | Spacing of water connection (mm) | Refrigerant inlet(mm) | Refrigerant outlet(mm) |
GAH01-CMF/ GBH01-CMF | 3.5 | 2.5 | 2.5 | 0.6 | 221 | 140 | 12.7 | 9.52 |
GAH02-CMF/ GBH02-CMF | 5 | 3.5 | 3.5 | 0.86 | 261 | 180 | 12.7 | 9.52 |
GAH03-CMF/ GBH03-CMF | 7 | 5 | 5 | 1.2 | 331 | 250 | 12.7 | 9.52 |
GAH04-CMF/ GBH04-CMF | 10 | 7.5 | 7.5 | 1.72 | 391 | 310 | 15.88 | 9.52 |
GAH05-CMF/ GBH05-CMF | 13 | 9.5 | 9.5 | 2.24 | 308 | 220 | 19.05 | 12.7 |
GAH06-CMF/ GBH06-CMF | 16 | 12 | 12 | 2.75 | 353 | 265 | 19.05 | 12.7 |
GAH07-CMF/ GBH07-CMF | 18 | 14 | 14 | 3.5 | 396 | 308 | 19.05 | 12.7 |
GAH08-CMF/ GBH08-CMF | 22 | 16 | 16 | 3.7 | 440 | 352 | 19.05 | 12.7 |
GAL10-CMF/ GBL10-CMF | 33 | 13 | 23 | 5.7 | 467 | 360 | 28 | 12.7 |
GAL12-CMF/ GBL12-CMF | 38 | 28 | 28 | 6.5 | 507 | 400 | 28 | 12.7 |
GAS15-CMF/ GBS15-CMF | 45 | 35 | 35 | 7.8 | 565 | 460 | 28 | 19.05 |
Heating1: DB 7 ℃,WB 6℃, Inlet water 40℃, outlet water 45℃
Heating2: DB -12 ℃, Outlet water 41℃
Cooling: DB 35 ℃,WB 24℃, Inlet water 12℃, outlet water 7℃
Company Introduction:
Gimleo Heat Exchanger Co., Ltd. is located in Shunde , Foshan city
, a professional manufacturer of energy- saving heat exchanger
equipment integrated with R& D, manufacture, sales and service.
Gimleo, founded in 2005, is based on high tech and high quality
with advanced manufacturing facilities, testing equipment along
with many high-educated professional staff; especially we’ve
established a heat exchange capacity-testing lab ahead of others in
the industry.
Our products cover high efficiency tube in shell heat exchanger,
titanium heat exchanger, nickel-copper tube in shell heat
exchanger, coaxial heat exchanger, etc. which can be widely used in
swimming pool equipment, aquarium chiller, marine refrigerant
units, air source heat pump, water source heat pump, aquaculture,
pharmacy, food industry, electroplating industry and heat recovery
from the waste water or exhaust gas.
We deeply realize the importance of scientific management and
technical innovations.Firstly Gimleo has passed the ISO 9001
improving and strengthening the entire quality control process from
R& D to sales.Meanwhile, the company establishes the perfect
information platform for the whole manufacturing and R& D
system-ERP. In 2016 .We had passed 174 environmental REACH testing
and certification.
After several years of development, Gimleo has become a leading
domestic enterprise in manufacturing heat exchangers, in great
cooperating relationships with about 150 companies.

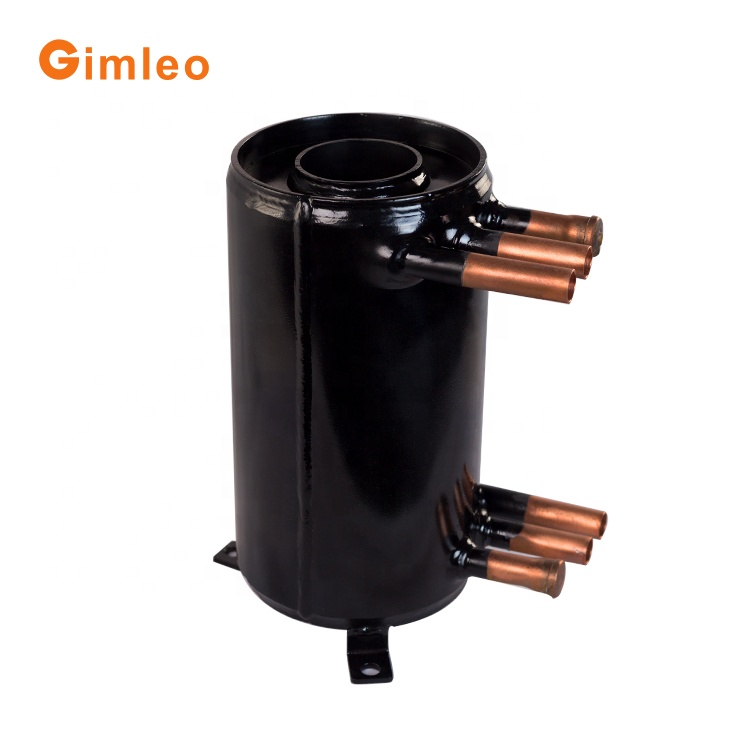

Products Detail:
