Product Description:
A standout feature of this heat exchanger is its double tube sheet
design, which significantly enhances safety and reliability. This
design ensures complete separation of the two fluids, minimizing
the risk of cross-contamination and improving the overall
efficiency of the heat transfer process.

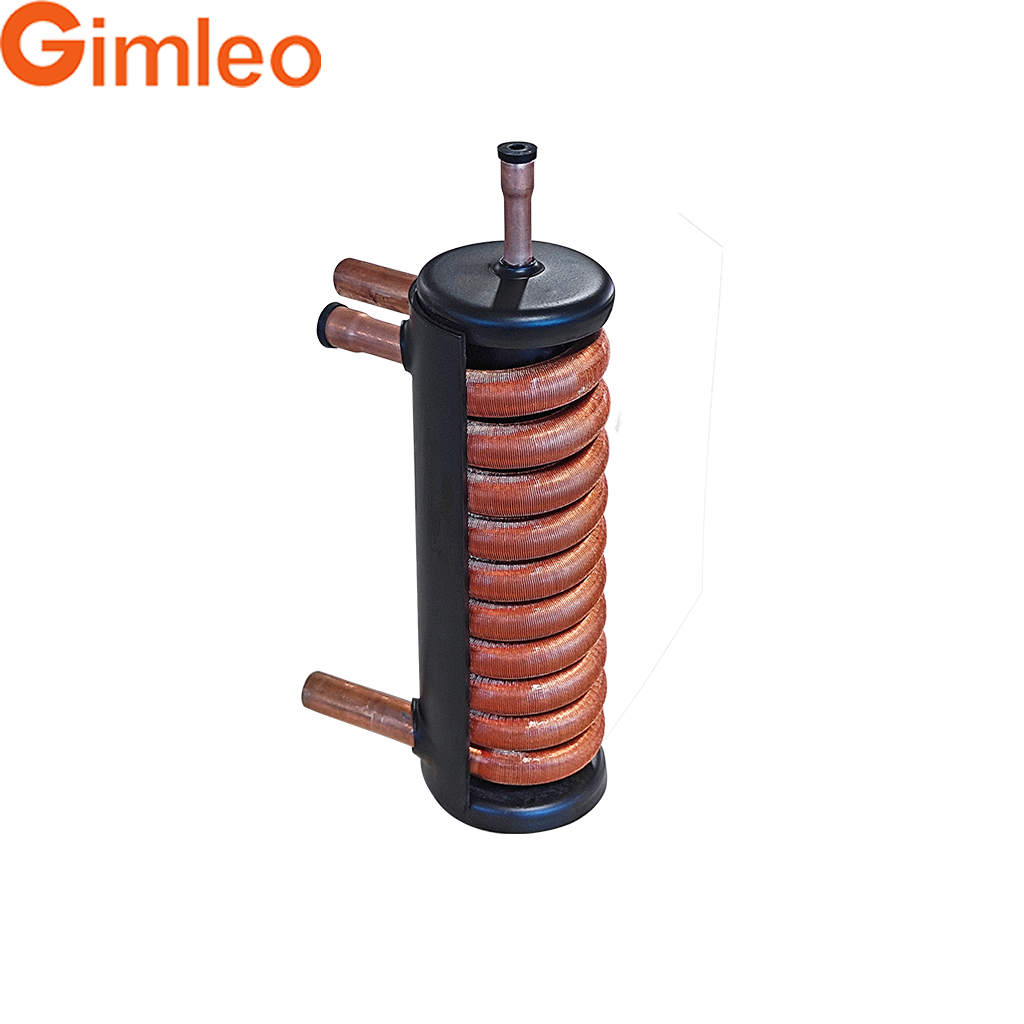

Another key feature of the GAH/GBH Tube In Shell Heat Exchanger is
its adjustable shell diameter. This flexibility allows you to
choose the diameter that best meets your specific requirements,
ensuring optimal heat transfer performance.
With a maximum pressure rating ranging from 10 to 50 Bar, this heat
exchanger is highly versatile and capable of handling a broad
spectrum of fluid pressures. This makes it suitable for a wide
range of industrial applications.
Features:
- Product Name: GAH/GBH tube in shell heat exchanger
- Max Pressure: 10-50 Bar
- Type: Tube In Shell
- Tube Pitch: Tube Pitch
- Shell Diameter: Customizable
- Tube Side Fluid: Refrigerant
This product is a type of heat exchanger that uses a tube in shell design. It has a maximum pressure rating of 10-50 Bar and a
customizable shell diameter. The tube pitch is also adjustable. The
tube side fluid is refrigerant. This product may also be referred
to as a heat exchanger finned tube or a fin and tube heat exchanger .
Technical Parameters:
| Tube Pitch | Tube Pitch |
| Tube Arrangement | Inline/ Staggered |
| Type | Tube In Shell |
| Max Pressure | 10-50 Bar |
| Heat Transfer Area | 10-1000 M² |
| Material | Steel |
| Shell Side Fluid | Water |
| Application | Air Source Heat Pump, Geothermal Heat Pump |
| Max Temperature | 200-500°C |
| Tube Side Fluid | Refrigerant |
Applications:
The GBH07 model is an ideal solution for a variety of applications.
Its compact size and efficient heat transfer make it perfect for
use in HVAC systems, industrial and commercial applications such as
chemical processing, power generation, and food and beverage
processing. The product is also suitable for use in marine
applications such as shipboard and offshore installations where
space is at a premium.
The GBH07 Tube In Shell Heat Exchanger has a heat transfer area
ranging from 10-1000 M² and is designed for use with water as the
shell side fluid. The tube pitch and tube arrangement can be
customized according to the specific requirements of the
application. The product is also available with Heat Exchanger
Finned Tube for enhanced heat transfer.
In conclusion, the GBH07 Tube In Shell Heat Exchanger from GIMLEO
is a versatile and efficient solution for a variety of thermal
management applications. Its compact size, customizable design, and
high-quality construction make it an ideal choice for industrial
and commercial applications. Contact us today to learn more about
our products and services.
